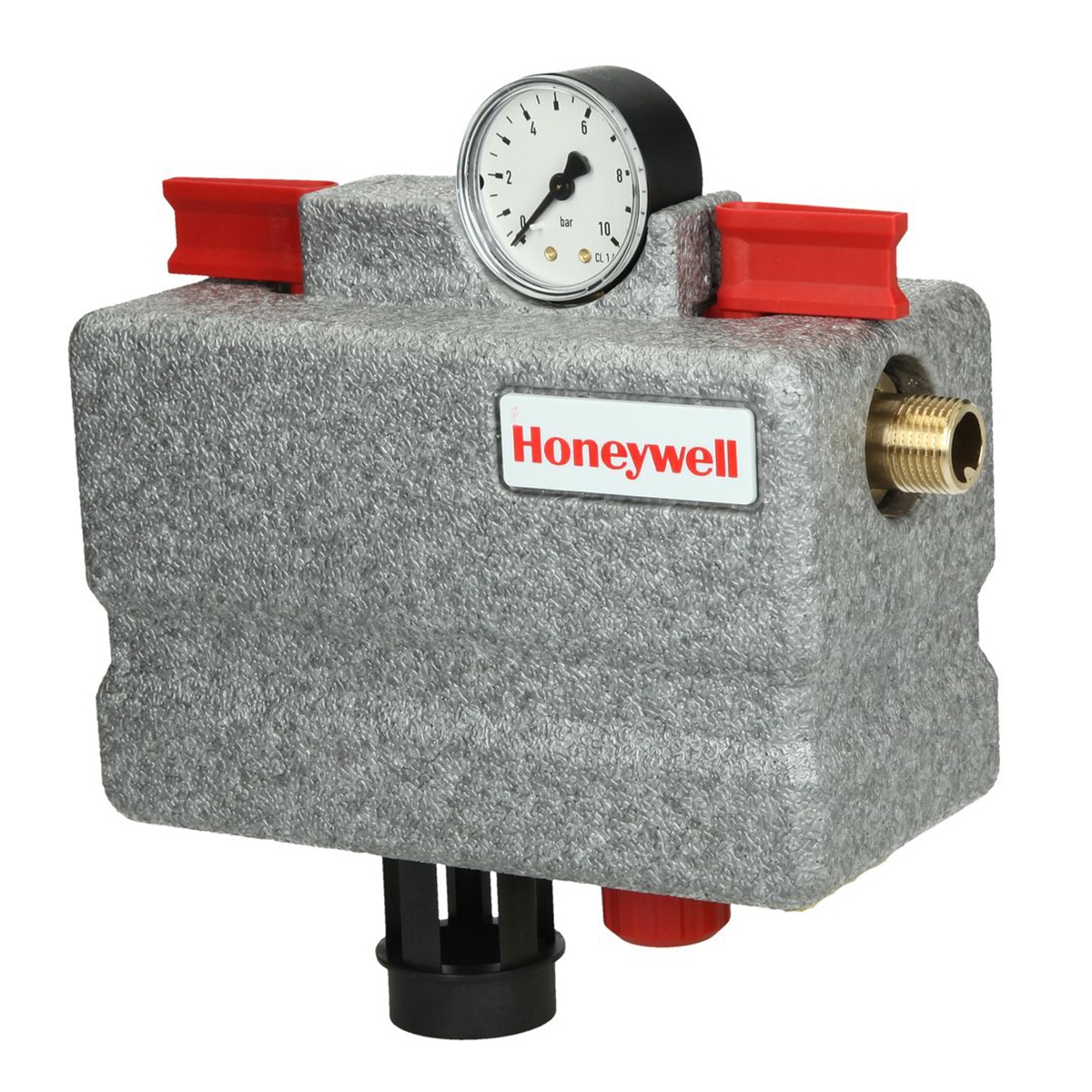

Refilling combination Liquid catagory 4, with pressure gauge, shutoff valve and isolating shell

The refilling combination serves filling and refilling of closed heating systems according to DIN EN 12828:2014-07. It can be connected in accordance with EN 1717:2000 permanently with the drinking water supply. The refilling combination combines a BA type backflow preventer, pressure reducing valve and two ball valves in one appliance. The unit consists of all needed devices for refilling a heating installation according to conforming standards are contained.

Approvals:                                   DVGW
Media:                                         Drinking water
Port connection:                         external threads
Mounting position:                     horizontal
Outlet pressure:                           1.5 ... 4 bar
Max. media temperature:           65 °C


Materials:
Dezincification resistant brass housing, complete backflow
preventer with discharge connection, valve cartridge and
valve insert in high-grade synthetic material, fibre-rein
forced EPDM diaphragm, NBR and EPDM seals, spring steel
adjustment spring, stainless steel fine filter mesh.

Filter mesh:                             200 micron
Liquid category (EN1717):     class 4
Inlet pressure range:              2 ... 10 bar
Preset Outlet Pressure:          1.5 bar
